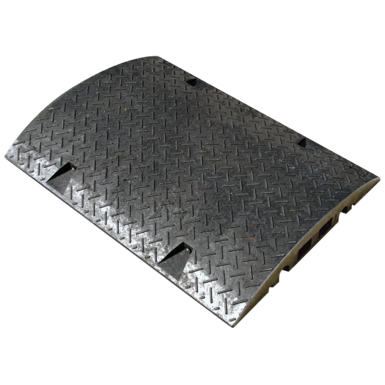

Cable bridge black
with 6 different channels
- max. crossing speed of 10 km/h
- maximum diameter of hoses / cables / pipes 50 x 35 mm
- Note: Cable bridges are not suitable for use in heavy load traffic!

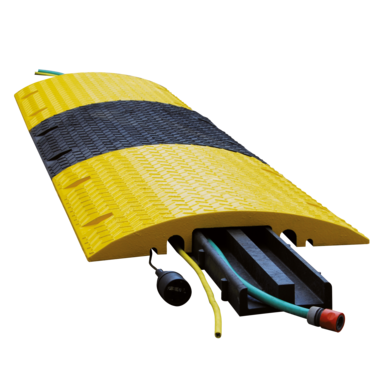

Modular system for the protection of exposed cables, smaller hoses or pipes which have to be crossed at construction sites or in case of operations.
- max. crossing speed of 10 km/h
- maximum diameter of hoses / cables / pipes 50 x 35 mm
- Note: Cable bridges are not suitable for use in heavy load traffic!
- no fixation required due to its hight weight
- black
- with insert

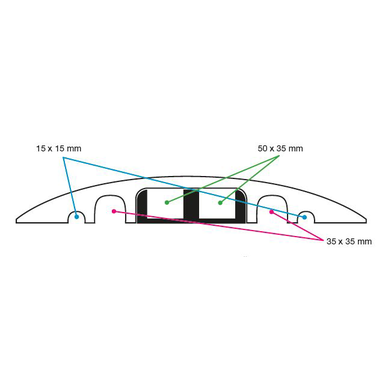

- 6 different channel sizes: 2x 15x15 mm, 2x 35x35 mm, 2x 50x35 mm
- anti-slip effect due to structured surface

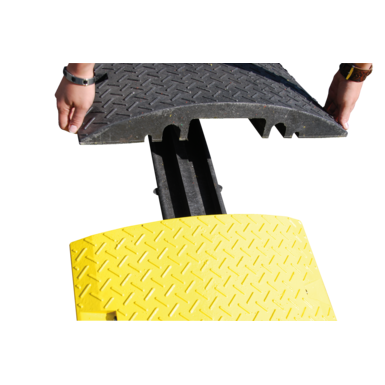

- can be assembled with any desired number of individual elements
Technical information
for Cablebridges
Cablebridges: Art. 25931N11, 25931N11GELB

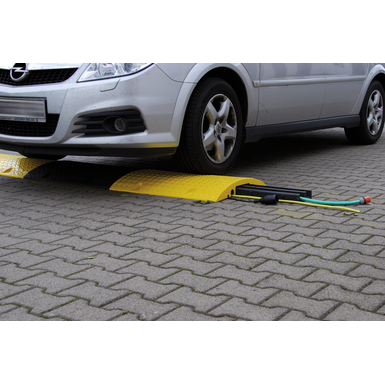

The above described products are exclusively applicable for use on roads in traffic calmed zones:
traffic calmed zones are considered as such if there is only maximum walking speed allowed, if the
traffic volume is very low and if the traffic shows only a low percentage of heavy trucks!
Please consider that the below described treatment or application of the cable ramp does not
correspond to the intended purpose and will significantly reduce the lifetime of the product or even
may lead to its destruction:
- Frequent overrunning by heavy trucks
- High percentage of heavy truck traffic
- Frequent overrunning with average speed higher than walking speed (>7 km/h)
- Over running rolling by construction vehicles/machines or other special vehicles / machines
- Overrunning with snow ploughs
Additionally
- Improper installation
- Freeze
- De-icing salt
- Grit
- Bad or bumpy ground
- Installation on pavement
will re-enforce the negative effects.
In case of non-compliance with the technical advises, horizont group gmbh cannot be liable for a reduced
life-time of the product.
Safety Instructions
Overrunning he cable ramp with speeds higher than walking speed ( > 7 km/h) may lead to damages at
the vehicle, especially if the vehicle has a low chassis clearance (e.g. sport cars or cars with a lowered
chassis)
Overrunning of the cable ramp with single track vehicles (e.g. bicycles or motorbikes), especially in bad
weather conditions may lead to falls..
horizont therefore highly recommends to set up warning signs, indicating that there is an
obstacle on the road, advising to drive carefully and not faster than 7 km/h.
